Service / 02
CAD Drafting Service
Clear drawings, revisions, and technical documentation organized for fabrication, production, and handoff.
Technical handoff
What you receive
- PDF production drawings
- DWG / DXF files for fabrication
- Detailed assembly drawings
- Revision-controlled documentation
Documentation that makes the next review, quote, fabrication, or release step easier to execute.
Final files, formats, and review requirements are agreed in the project scope.
From the ACMS resource library
Useful drawings start with useful information.

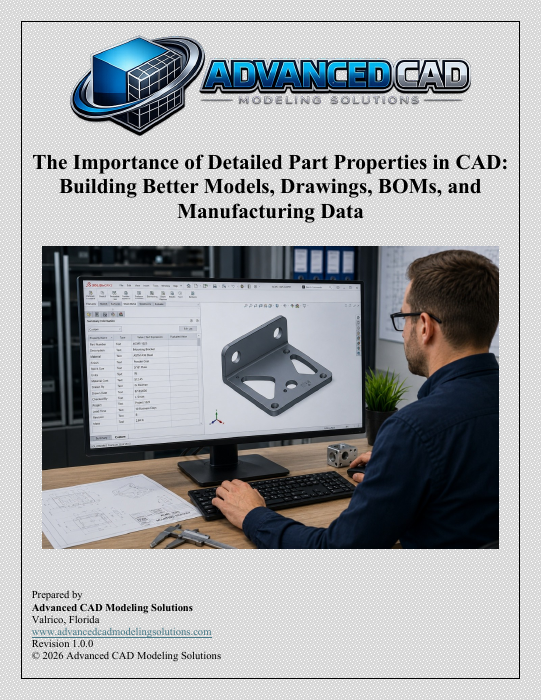

The ACMS part-properties guide explains the information that supports clearer CAD documentation. Use it as a reference when discussing your drawing requirements.
Open the reference guide (PDF) →Service overview
Detailed Technical Drawings for Manufacturing and Fabrication
Our CAD drafting services convert concepts, sketches, and 3D models into clear, precise technical drawings for manufacturing, fabrication, and assembly. Each drawing is developed to meet industry standards and includes all critical information required by machinists, fabricators, and production teams. We treat all projects as confidential by default, and deliver documentation ready for professional engineer (PE) review and approval when required.
Service fit, activities, and benefits
Who uses this service
- Machine shops
- Fabrication companies
- Manufacturing teams
- Engineering departments
What to expect
- 2D technical drawings from 3D models or sketches
- Dimensioning and tolerancing (GD&T where required)
- Material specifications and manufacturing notes
- Assembly drawings with callouts and references
- Flat patterns for fabrication
Benefits
- Reduced manufacturing errors and rework
- Clear communication between design and production
- Faster fabrication and assembly processes
- Consistent, standardized documentation
Common questions
Clarify the scope before work begins.
Can existing drawings be updated instead of recreated?
Yes, when the source files are usable. ACMS first reviews the available files and identifies the safest update path.
Can you follow an existing drawing standard?
Yes. Supply the applicable template, examples, and requirements so the agreed documentation can follow your established conventions.
Next step
Let’s keep your project moving.
Start a conversation
Tell us what you’re designing, improving, or manufacturing. We’ll help identify the right engineering support and a clear next step.
